NORE48F / NOBT48F
Introduction

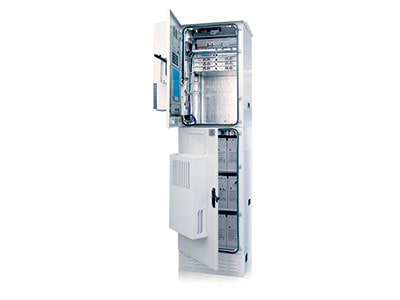

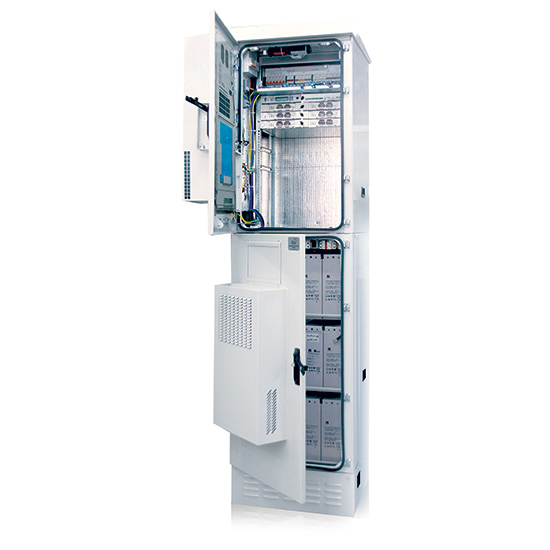

This outdoor series consists of two stackable cabinets and easy to transport parts with Intelligent Power Management systems (IPM) to increase the rectifier life time; the top section is designed for installation of power supply, alarm panel, AC & DC distribution MCBs and 8U free space (for Customer required equipment). The Bottom section is battery cabing and suffort VRLA and lithium battery. The cooling of each section is implemented by a particular DC air conditioner. The DC air conditioner will Continue the cooling, while the AC mains is disconnected, for increasing the system availability and batteries like cycle.
Features
• Fully custom design
• Capable of measuring, monitor and control cell by cell batteries
• 8U free space for telecommunications equipment
• Intelligent Power Management Unit (PMU)
• Up to 6 NCR48U hot-pluggable rectifiers (48V/3KW&2 KW)
• capable to support VRLA and lithium battery
• AC & DC power distribution MCBs (Custom Design)
• Remote control & monitoring
• Thermal Insulation
• galvanized metal Plinth
• Anti-theft belt (Optional)
• Multi-Point locking mechanism door
• Flood sensor (Optional for batteries cabinet)
• Anti crowbar doors
• Capable of supporting the lithium batteries
