NBR4M / NBR4U / NBR5M / NBR5S
Introduction

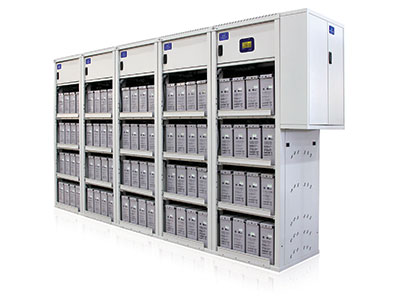

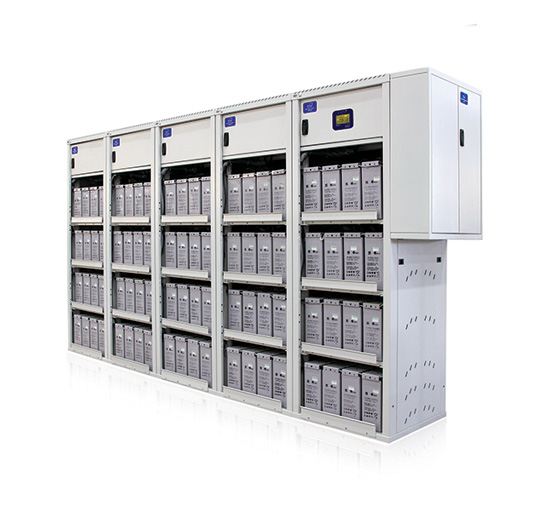

Telecommunications power conversion systems are necessary for providing reliable telecommunication without any interruptions. They continuously supply the required current in different situations. Nevertheless, the batteries (as one of the major complimentary parts of power conversion systems) play an important role in power supply chain. The Batteries store the electrical energy and deliver it in pre-defined situations when there is a power failure for any reason. Nian Electronic Battery Plant is equipped with an advanced monitoring system to control the batteries status and charging process. To ensure the best performance and the highest efficiency of the back-up batteries Nian Battery, one of the most successful subsidiaries of our industrial group is manufacturing and providing the required industrial back-up batteries of our products including the Battery Plant with Monitoring System NBR4M.
Features
• Capable of accommodating 12V batteries instead of 2V batteries to increase the free space and decrease the initial and maintenance costs
• Capable of monitoring 8 integrated racks cell by cell
• Capable of accommodating 100, 150, 155 and 200Ah VRLA batteries
• Using an advance monitoring system capable to monitor the battery key parameters. Ability to control the process of float, recovery and equalize battery harging, sending the required alarms for battery maintenance and increasing the battery life cycle. Also it can report the battery failure for identifying the dead batteries and prevent the damage of the other batteries.
Battery monitoring system features
• User friendly
• Touch screen control panel
• Short circuit protection
• Capable of monitoring 8 integrated parallel racks
• Detecting alarms in different charge modes
• Measuring and displaying each battery row current up to 200 A
• Measuring and displaying of each cell voltage with 0.1 accuracy
• Capable of measuring and displaying the capacity of each battery row
• Measuring and displaying the real discharge capacity at the time of battery discharge
• Detecting and displaying the status of each battery (voltage, temperature, current, etc.)
• Capable of viewing the status of each supervisory counectors by the user
• Capable of saveing 3000 events in details in data-logger system for each battery cabinet
• Identifying and displaying the type of charge (float, recovery and equalize charge modes)
• Capable of displaying the connection status of MCBs strings for each battery
• Identifying the battery failure mode (float, recovery and equalize charge modes)
• Measuring and displaying temperature & humidity parameters and bus-bar voltage of each cabinet and reporting the related alarms
• Capable of displaying the alarms of each battery and each cabinet with the below details:
- Battery voltage
- Bus voltage
- Average voltage for each row of the battery
- Current of each row
- Time and date of released alarms
- Displaying charging mode to PMU(Floatl Recovery / Equalized)
• Capable of connecting GSM to send the information and alarms through the SMS for 5 users
• Capable of connecting network with the below features:
- Remote upgrade
- LAN port
- Monitoring web base
- MODBUS protocol for monitor
- Capable of monitoring through the SNMP protocol
- Capable of receiveing the Microsoft Excel from each battery logger through the HTTP protocol without application of any additional software
• Modular monitoring design, easy installation and battery replacement
