NOR48-E-Series
Introduction

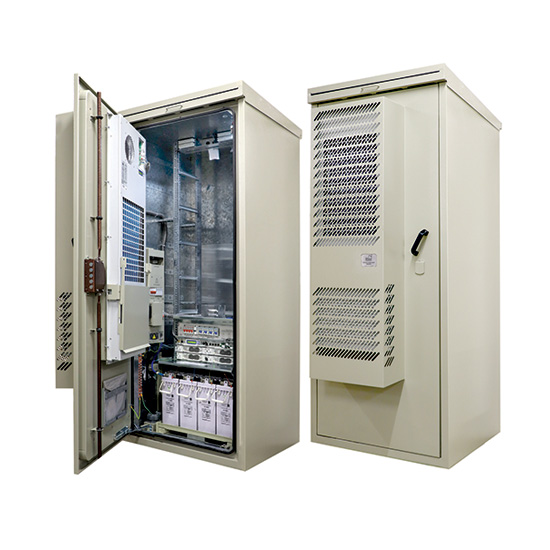

Nian Electronic Company has custom-designed and produced integrated outdoor power systems especially for the climate of CIS region and compatible with special technical requirements of CIS customers and mobile operators. The special feature of this cabinets is 2 layers and RAL 7032 colored body and special insulation between the metal layers. This cabinet series are capable of supporting full technology 2G/3G/4G and lithium battery. This cabinet series are capable of power expansion to support 5G technology.
Features
• Fully Custom Design
• 2 Layers Insulated Body
• Anti-Crowbar Body
• IP 55
• Sloping Roof with Sun Shield
• Multi Bar Lock
• Base Plinth with Left and Right Cable Entry
• RAL 7032 Color
• Front Access
• DC Air Conditioner & AC Heater
• Operational Temperature -40°c Up to +50°c
• 3 Phase Input AC
• Switch Between DGU and Network Grid Power
• 19" Embedded Power Shelf
• More Than 96% Efficiency Rectifier
• 85 up to 300 VAC Rectifier Voltage Range
• Intelligent Power Management System (IPM)
• 2 x LLVD – 1 x BLVD
• AC & DC Distribution MCBs
• Intelligent Power Management Unit With Wi-Fi and RJ45 and USB Port Connection
• Smoke, Flood, Humidity, Temperature, Door Opening, Vibration Sensors.
• Cell by Cell Battery Monitoring.
• Free space for telecommunications equipment
• Capable of supporting VRLA and Lithium Battery
