NORE48S / NOBT48S-NORE48F / NOBT48F
Introduction

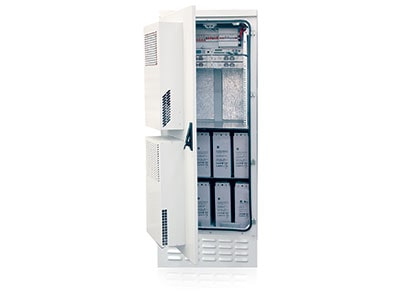

This outdoor series consist of two separate cabinets and easy to transport parts with Intelligent Power Management systems (IPM) to increase the rectifier cabinet life time; the rectifier cabinet is designed for installation of power supply, alarm panel, AC & DC distribution MCBs and free space (for further required equipment). The Battery cabinet section is for battery back-up. The cooling of each section is implemented by a particular DC air conditioner which continues the cooling while AC failures.
Features
• Fully custom Design
• Capable of measuring, monitoring and controling cell by cell batteries
• Compatible whit 2G/ 3G/ 4G /5G Technology
• Free space for telecommunications equipment
• Intelligent Power Management Unit (PMU) •
Hot-pluggable rectifiers (48V/ 3KW & 2KW)
• Capable of supporting VRLA and lithium battery
• AC & DC power distribution MCBs (Custom Design)
• Remote control & monitoring
• Isolated with polyurethane foam
• galvanized metal Plinth
• Anti-theft belt (Optional)
• Anti crowbar doors
